OverviewThe following pages cover the step by step instructions on how to solder the Rev F PCB. (NOTE: The PCBs in the example pictures and videos are a prototype
version of the PCB and were mistakenly labeled Rev Ee)
Click the images to zoom in. All the construction example videos from these pages are also available on YouTube. Some good intro to soldering videos can be found at curiousinventor.com and also at sparkfun on YouTube (some of the videos may be upside down on this website).
9 - USB MiniB -MOLEX 54819-0519

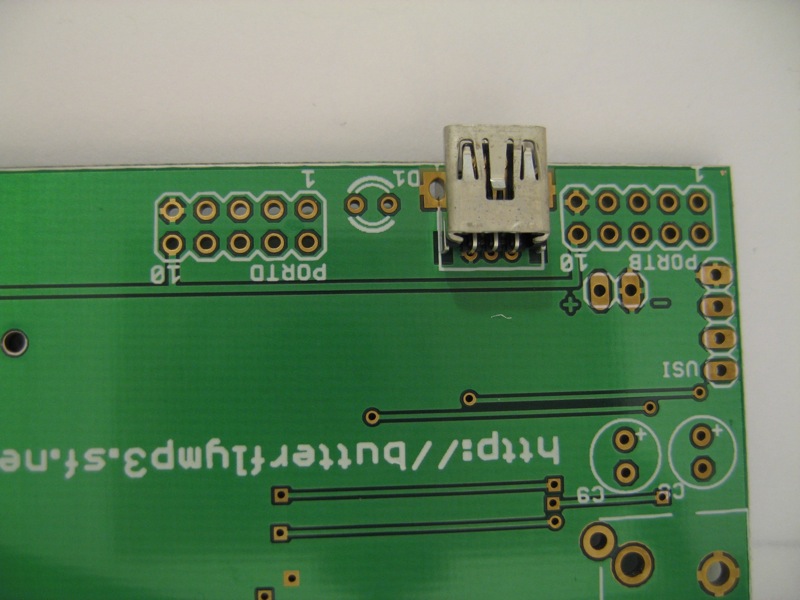

The photos above show the placement of the USB mini B connector. This connector is currently only used for charging only. The length of the pins are rather short for the thickness of the PCb being used.
|
