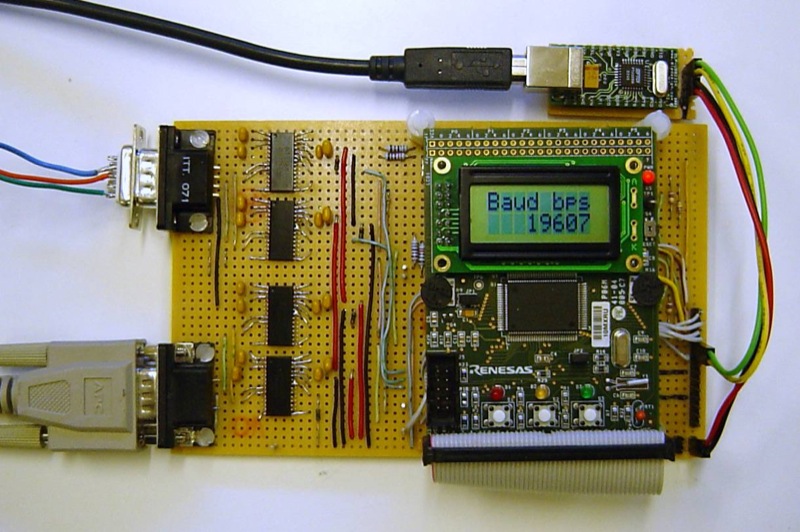

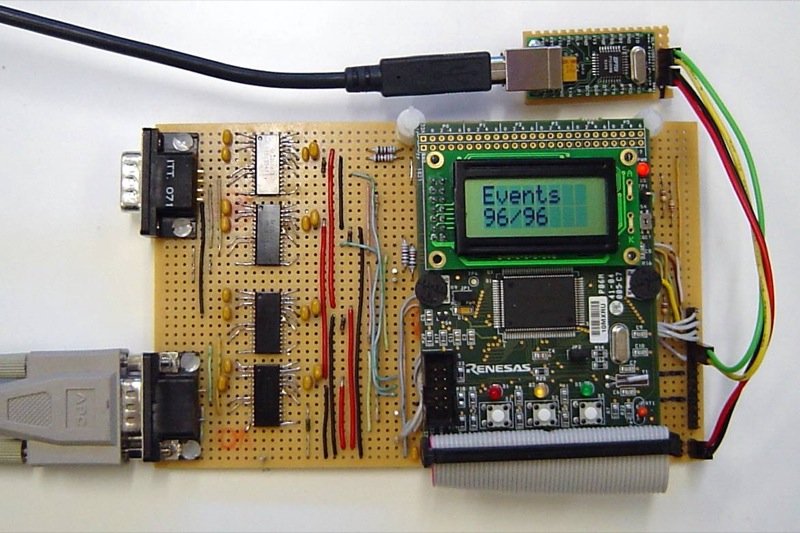

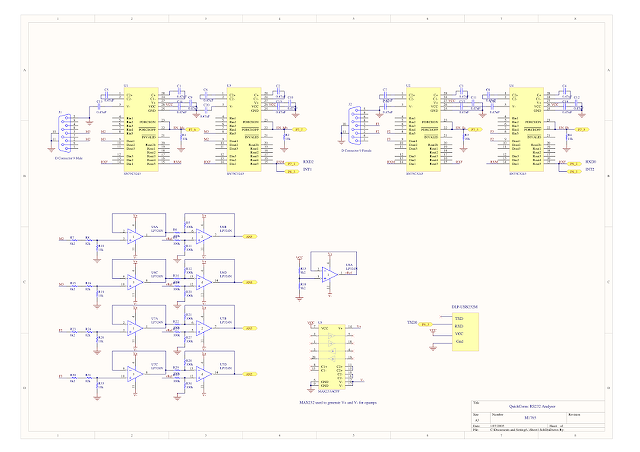

SchematicsFigure 1 Schematic diagram for Quickcoms. A PDF version is available here Listing 3: Connection checking routine from the main.c file/***************************************************************************** Name: configurePins Parameters: none Returns: none Description: Checks the analog levels of rs232 pins to decide which are TXD and RXD pins on each connector. **************************************************************************** */ void configurePins(void) { int f2=512; int f3=512; int m2=512; int m3=512; cables =0; while (cables==0){ // disable trancievers DDR_ENFA = 1; DDR_ENFB = 1; DDR_ENMA = 1; DDR_ENMB = 1; ENFA = FALSE; ENFB = FALSE; ENMA = FALSE; ENMB = FALSE; //setup ADC adcon0 = 0x90; /* 10010000; ** Repeat sweep mode 0, soft trigger, fAD/2 ||||||||______Analog input select bit 0 |||||||_______Analog input select bit 1 ||||||________Analog input select bit 2 |||||_________A/D operation mode select bit 0 ||||__________A/D operation mode select bit 1 |||___________Trigger select bit ||____________A/D conversion start flag |_____________Frequency select bit 0 */ adcon1 = 0x3A; /* 00111010; ** Scan AN0-AN%, 10-bit mode, fAD/2, Vref connected ||||||||______A/D sweep pin select bit 0 |||||||_______A/D sweep pin select bit 1 ||||||________A/D operation mode select bit 1 |||||_________8/10 bit mode select bit ||||__________Frequency select bit 1 |||___________Vref connect bit ||____________External op-amp connection mode bit 0 |_____________External op-amp connection mode bit 1 */ adcon2 = 0x01; /* 00000001; ** Sample and hold enabled, fAD/2 ||||||||______AD conversion method select bit |||||||_______AD input group select bit 0 ||||||________AD input group select bit 1 |||||_________Reserved ||||__________Frequency select bit 2 |||___________Reserved ||____________Reserved |_____________Reserved */ adst = 1; // Start a conversion here while (adst); // wait for conversions to be done.
f2= AN_F2 & 0x03ff; // Mask off the upper 6 bits of the // variable leaving only the result // in the variable itself f3= AN_F3 & 0x03ff; // Mask off the upper 6 bits of the // variable leaving only the result // in the variable itself m2= AN_M2 & 0x03ff; // Mask off the upper 6 bits of the // variable leaving only the result // in the variable itself m3= AN_M3 & 0x03ff; // Mask off the upper 6 bits of the // variable leaving only the result // in the variable itself
// enable correct trancievers by looking for negative voltages if (f2>VOLTAGE_232){ // 573 = ((-3V/-10 + 2.5V)/ 5V )* 1023 DisplayString(LCD_LINE2 ,"DB9F "); ENFA = TRUE; ENFB = FALSE; VoltageF = (f2-512) ; }else if (f3>VOLTAGE_232){ DisplayString(LCD_LINE2 ,"DB9F Xvr"); ENFA = FALSE; ENFB = TRUE; VoltageF = (f3-512); }else{ // no DB9F Detected //DisplayString(LCD_LINE2 ,"No DB9F "); } if (m2>VOLTAGE_232){ DisplayString(LCD_LINE1, "DB9M "); ENMA = FALSE; ENMB = TRUE; VoltageM = (m2-512) ; }else if (m3>VOLTAGE_232){ DisplayString(LCD_LINE1, "DB9M Xvr"); ENMA = TRUE; ENMB = FALSE; VoltageM = (m3-512) ; }else{ // no DB9M Detected //DisplayString(LCD_LINE1, "No DB9M "); } // check number of cables and setup interrupts accordingly. cables = (char) (ENFA + ENFB + ENMA + ENMB); switch (cables){ case 0: DisplayString(LCD_LINE1 ,"No cable"); DisplayString(LCD_LINE2, "detected"); int_init(0); break; case 1: if (ENFA+ENFB){ // DB9F int_init(2); }else{ // DB9M int_init(1); } break; case 2: int_init(2); // DB9F by default break; } } // while(!S2); } |
