testing.h File Reference

#include <avr/io.h>
#include <avr/pgmspace.h>
#include <avr/interrupt.h>
#include "types.h"
#include "uart.h"
#include "delay.h"
#include "vs1001.h"
#include "mmc.h"
#include "avrfat16.h"
#include "button.h"
#include "pcd8544.h"
#include "lcdgraphics.h"

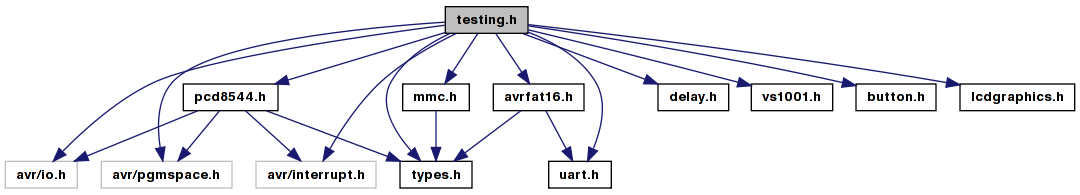

Include dependency graph for testing.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	FAT_TABLEBUFFERSIZE   128
Functions
void	dump_buffer (uint8 lines, uint8 buffer[])
uint8	MMC_tester (void)
uint8	FAT_tester (void)
Variables
uint8	mmc_sbuf []
	512 byte sector buffer in internal RAM
uint8	fbXY []
uint16	fat_sectors [128]
uint8	longfilename [260]

---

Define Documentation

#define FAT_TABLEBUFFERSIZE   128

Definition at line 28 of file testing.h.

---

Function Documentation

void dump_buffer	(	uint8	lines,
		uint8	buffer[]
	)

Definition at line 10 of file testing.c.

References EOL, PRINT, UART_Printfu08(), and UART_SendByte().

Referenced by MMC_tester().

Here is the call graph for this function:

uint8 FAT_tester

(

void

)

Definition at line 117 of file testing.c.

References EOL, FAT16_cluster_begin_lba, FAT16_fat_begin_lba, FAT16_root_dir_first_sector, FAT16_sectors_per_cluster, FAT_buffer, FAT_initFat16(), FAT_read, FAT_write, FILE_TYPE_DIR, FILE_TYPE_FILE, MMC_Read(), MMC_Reset(), mmc_sbuf, mmc_scratch, PRINT, UART_Printfu08(), UART_Printfu32(), and UART_Puts().

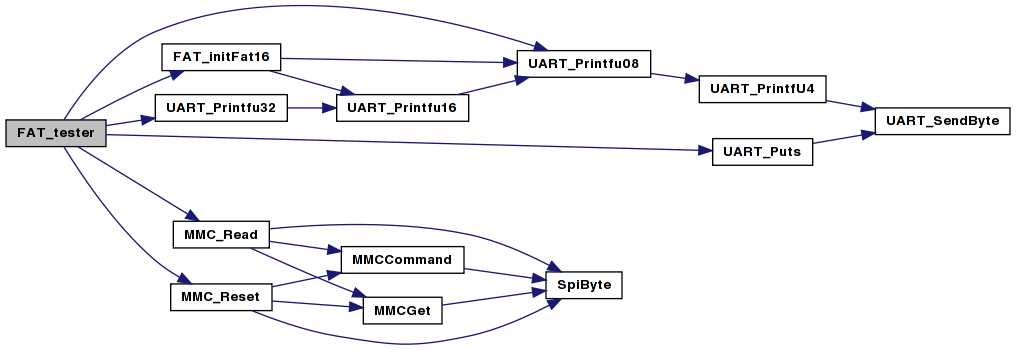

Here is the call graph for this function:

uint8 MMC_tester

(

void

)

Definition at line 37 of file testing.c.

References dump_buffer(), EOL, MMC_Check(), MMC_Read(), MMC_Reset(), mmc_sbuf, mmc_scratch, PRINT, UART_Printfu08(), UART_Printfu16(), UART_Printfu32(), and UART_Puts().

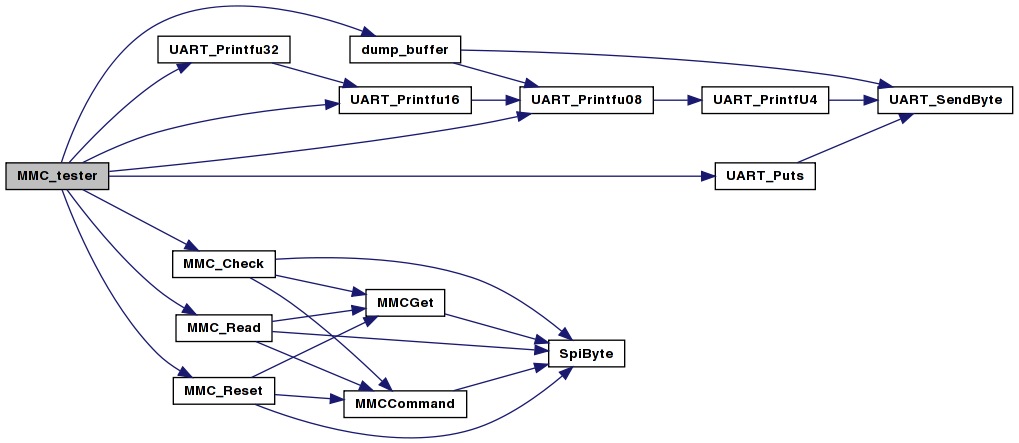

Here is the call graph for this function:

---

Variable Documentation

uint16 fat_sectors[128]

Definition at line 35 of file testing.h.

uint8 fbXY[]

Definition at line 116 of file pcd8544.h.

uint8 longfilename[260]

Definition at line 37 of file testing.h.

uint8 mmc_sbuf[]

512 byte sector buffer in internal RAM

Definition at line 58 of file mmc.c.

Referenced by FAT_tester(), init_HW(), MMC_Read(), and MMC_tester().
